Steel Structure Coating Systems — ISO 12944 C3 to C5 Anti-Corrosion Solutions
Engineered coating systems for commercial buildings, bridges, stadiums, and heavy industrial steel — compliant with ISO 12944, tested to 1440h salt spray.
Combatting Atmospheric Corrosion in Structural Steel
Structural steel is the backbone of modern infrastructure, yet it remains highly susceptible to rapid degradation. Without effective structural steel corrosion protection, industrial and coastal environments can cause unprotected steel to lose significant load-bearing capacity within just a few years due to electrochemical oxidation.
Specifying the right coating system design life starts with ISO 12944 atmospheric corrosivity categories — from C3 urban environments to the most aggressive CX offshore conditions. A correctly engineered system, validated against these categories, can deliver a design life exceeding 25 years (DL H) while minimizing Total Cost of Ownership (TCO). Our approach integrates sacrificial zinc-rich primer protection with high-performance epoxy barrier layers and UV-stable topcoats to meet the full range of ISO 12944 structural steel coating requirements.
Full Certification Compliance
Extreme Environment Defense
Optional Eco-Friendly Systems
Expert Inspection Support
Built to Withstand Severe Environments
We don’t just supply paint; we analyze your steel’s operational environment to prevent structural failure.
Atmospheric Corrosion
Industrial pollutants and humidity trigger electrochemical oxidation that can corrode unprotected steel at over 200 µm/year in C4–C5 environments. A zinc-rich primer system reduces active corrosion to near-zero, achieving a 25-year design life per ISO 12944.
UV Radiation & Weathering
Intense sunlight causes standard epoxy topcoats to chalk, fade, and lose adhesion. Aliphatic polyurethane and fluorocarbon topcoats maintain 80%+ gloss retention after 2,000 hours of UV exposure — keeping structural steel coating systems performing for decades.

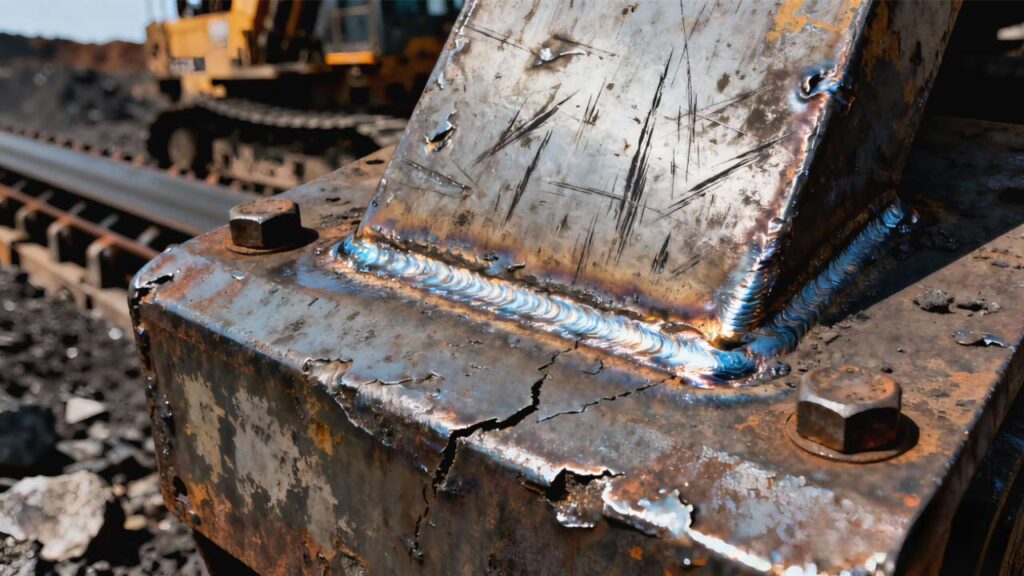

Mechanical Impact
Fabrication and erection subject steel members to repeated impact that compromises coating integrity before service begins. High-build epoxy intermediate coats (60–80 µm DFT) provide exceptional resistance and ensure the full anti-corrosion system performs to its rated design life.
Recommended Coating Systems
Select the optimal primer-to-topcoat combination based on your ISO 12944 corrosivity category.

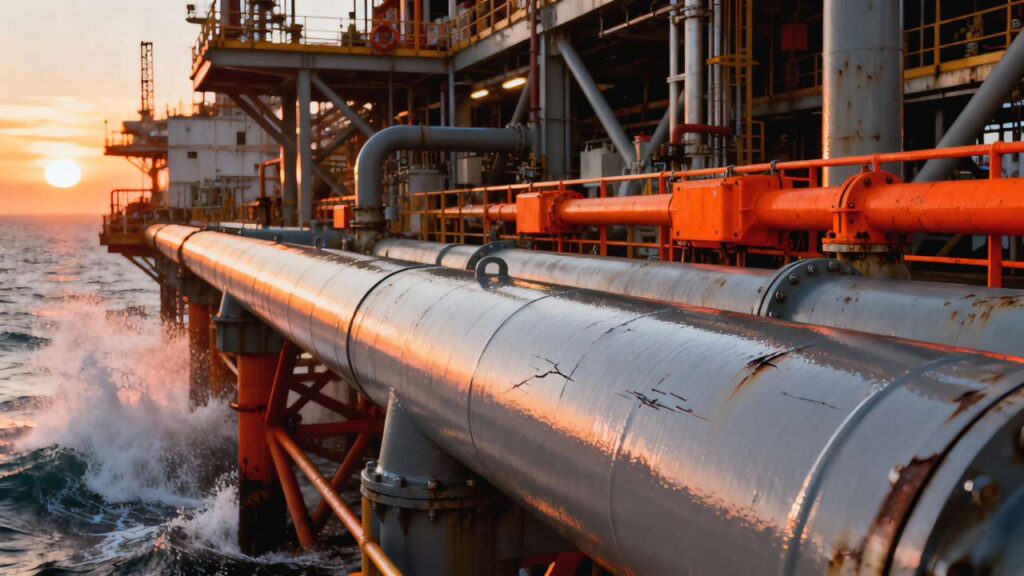

Extreme Marine & Offshore System
The ultimate protection for offshore platforms, chemical plants, and environments with permanent high condensation and high pollution.
Blast-Cleaned Steel (Sa 2.5)
Heavy Industrial System
Engineered for chemical plants, coastal infrastructure, and industrial areas with high humidity and aggressive pollutants.
Blast-Cleaned Steel (Sa 2.5)

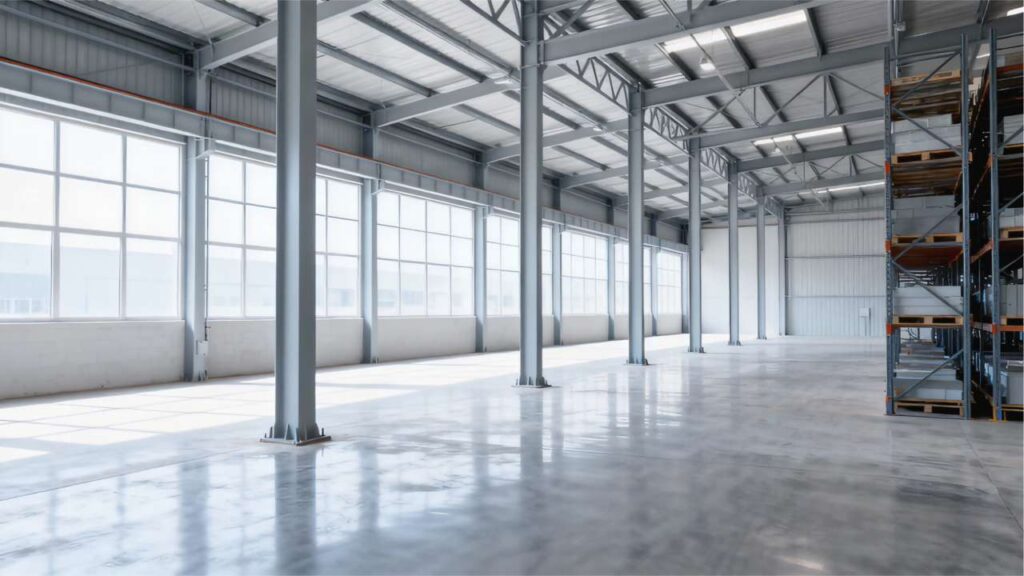

Commercial & Light Industrial System
Optimal protection for urban infrastructure, stadiums, and facilities with moderate sulfur dioxide pollution.
Manual (St 2) or Blast Cleaning (Sa 2)
Tested in Labs. Proven in the Field.
Fully compliant with ISO 12944 standards. Trusted by heavy industry contractors worldwide.
Coastal Steel Structures
System: Zinc-Rich Epoxy + MIO +Fluorocarbon
Total DFT: 260 µm
Status: Passed 1440h Salt Spray Test
Petrochemical Plant Framework
System: Epoxy Primer + High-Build PU
Total DFT: 200 µm
Status: Excellent Chemical Resistance
Coastal Suspension Bridge
Let's Protect Your Next Mega Project.
Get a customized ISO 12944 compliant coating specification tailored to your environment.
NACE / FROSIO Certified Support
We don’t just supply paint. Our certified inspectors provide on-site guidance to ensure perfect application and maximum durability.
Frequently Asked Questions
What is the best coating for C5 environments?
For C5 marine and offshore environments, an Inorganic Zinc Silicate primer followed by an Epoxy MIO intermediate and a high-build Polyurethane or Fluorocarbon topcoat (Total DFT ≥ 260 µm) provides the best long-term protection.
Do you provide testing reports for your coating?
Yes, all HUILI steel structure coatings undergo severe salt spray testing (up to 1440 hours) and are fully certified by SGS.
How do I calculate the required paint volume?
Paint consumption depends on the steel tonnage, surface profile, and application method. Fill out the form, and our engineers will calculate the exact volume and cost for you.
Request a Custom Specification
Tell us about your steel structure, and receive a complete coating system proposal within 24 hours.
