Solvent-free epoxy ceramic coating (2K) for thick-film protection on tanks and pipelines.
Pipelines, chemical equipment, tank surfaces.
Pot life 4 h; recoat 24 h–7 d.
98% solids; smooth, hard, chemical resistant.
PLH52-8 Solvent-Free Epoxy Ceramic Coating is a two-component solvent-free epoxy ceramic coating for heavy-duty anti-corrosion topcoat applications.
This topcoat is used for water pipelines, oil pipelines, chemical equipment, and storage tank surfaces in heavy-duty anti-corrosion service.
It is composed of epoxy resin, special pigments, aggregates, fillers, additives, and a high-efficiency curing agent, and is supplied as Part A and Part B.
Solvent-free formulation.
Designed for heavy-duty anti-corrosion topcoat applications.
Suitable for water pipelines and oil pipelines.
Suitable for chemical equipment.
Suitable for storage tank surfaces.
Volume solids: 98%.
This topcoat is suitable for a wide range of anti-corrosion projects in industrial environments.
Water pipelines
Oil pipelines
Chemical equipment
Storage tank surfaces
Blast to Sa 2.5 or power-tool clean to St 3; surface profile 30–75 µm.
Storage
dry, cool, ventilated; away from fire; avoid strong sunlight; no outdoor storage.
System compatibility information is not provided in the current product data.
This product is a two-component solvent-free epoxy ceramic coating supplied as Part A and Part B.
This topcoat is used for heavy-duty anti-corrosion protection on water pipelines, oil pipelines, chemical equipment, and storage tank surfaces.
This topcoat can be applied by airless spray or brush.
The volume solids content is 98%.
X-7 epoxy thinner may be used, with none or minimal thinning.
The recommended dry film thickness per coat is 70–120 µm, or 40–50 µm by brush.
We would love to speak with you.
Feel free to reach out using the below details.

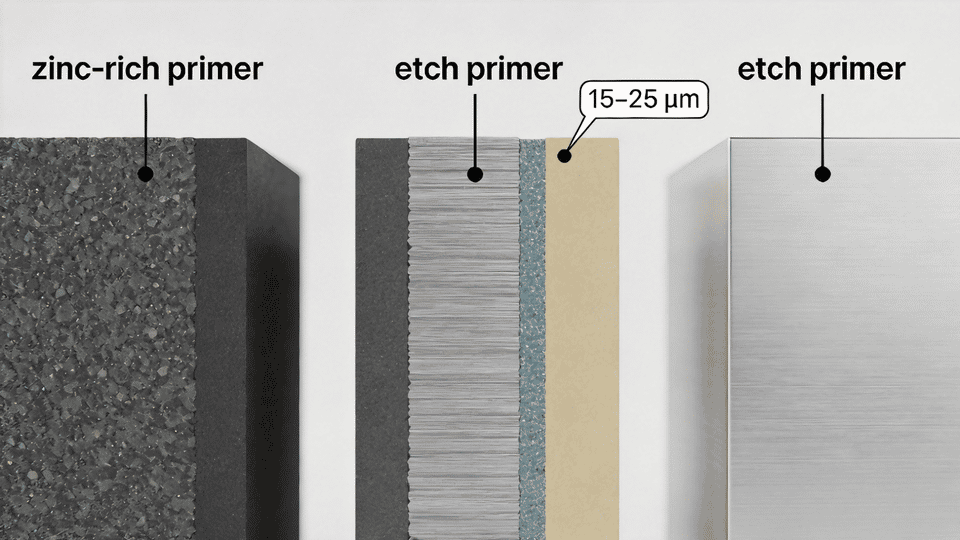

Vinyl Phosphating Primer (2K) – Two-component phosphating primer for galvanized steel, aluminum, and other light metals.
Forms chemical adhesion to improve intercoat adhesion of subsequent coatings.
Low film thickness system: 15–25 µm DFT per coat; theoretical consumption 0.06 kg/m² at 20 µm DFT.
Min. recoat 2 h (25°C); dedicated PLX06 thinner (10–20%).
Inorganic Zinc-Rich Primer (2K) – Two-component ethyl silicate zinc-rich primer for cathodic protection of blast-cleaned steel.
General-purpose use for bridges, towers, gas holders, oil tanks, oil/gas pipelines, and industrial steel structures.
High zinc dust content with stated water/oil/media resistance and welding/cutting resistance.
Sa 3 surface preparation (not lower than Sa 2.5); touch dry 10 min at 25°C, RH 70–85%.
Epoxy zinc phosphate anti-rust primer (2K) for heavy-duty steel corrosion protection.
For ports/docks, heavy structures, mining machinery, power machinery plants, and water conservancy steelwork.
Zinc phosphate anti-rust pigment system with stated water and salt water resistance.
Mix ratio 7:1; theoretical consumption 0.12 kg/m² at 50 µm DFT.
Epoxy Zinc Primer (2K, C6-Modified) – Two-component epoxy zinc primer (C6-modified) for cathodic-protection priming.
Salt spray resistance 1300 h (as stated).
Theoretical consumption 0.25 kg/m² at 50 µm DFT (losses not included).
For offshore platforms, underwater steel, pipelines, oil tanks, bridges, and petrochemical steel structures.
